Custom Icon Native Asset

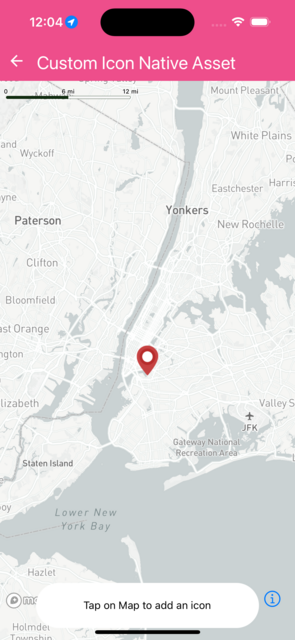

Renders a symbol layer with custom icon (native asset) defined using the Images component. Clicking a location on a map adds a new icon.

import { useRef, memo, useState } from 'react';
import { Text } from 'react-native';
import {
MapView,
Camera,
ShapeSource,
SymbolLayer,
Images,
StyleURL,
} from '@rnmapbox/maps';
// @ts-ignore - @turf packages have type resolution issues with package.json exports
import { featureCollection, feature, point } from '@turf/helpers';

import Bubble from '../common/Bubble';
import type { ExampleWithMetadata } from '../common/ExampleMetadata';

const styles = {
icon: {
iconImage: 'pin',
iconAllowOverlap: true,
},
};

const CustomIconNativeAsset = memo(() => {
const cameraRef = useRef<Camera>(null);
const [stateFeatureCollection, setStateFeatureCollection] =
useState<GeoJSON.FeatureCollection>(
featureCollection([point([-73.970895, 40.723279])]),
);

const onPress = (e: GeoJSON.Feature) => {
const aFeature = feature(e.geometry);
aFeature.id = `${Date.now()}`;

setStateFeatureCollection(
featureCollection([...stateFeatureCollection.features, aFeature]),
);
};

const onSourceLayerPress = (e: any) => {
console.log(
'You pressed a layer here are your features:',
e.features,
e.coordinates,
e.point,
);
};

return (
<>
<MapView style={{ flex: 1 }} styleURL={StyleURL.Light} onPress={onPress}>
<Camera
ref={cameraRef}
defaultSettings={{
zoomLevel: 9,
centerCoordinate: [-73.970895, 40.723279],
}}
/>
<ShapeSource
id="symbolLocationSource"
hitbox={{ width: 20, height: 20 }}
onPress={(e) => onSourceLayerPress(e)}
shape={stateFeatureCollection}
>
<SymbolLayer
id="symbolLocationSymbols"
minZoomLevel={1}
style={styles.icon}
/>
<Images nativeAssetImages={['pin']} />
</ShapeSource>
</MapView>
<Bubble>
<Text>Tap on Map to add an icon</Text>
</Bubble>
</>
);
});

export default CustomIconNativeAsset;

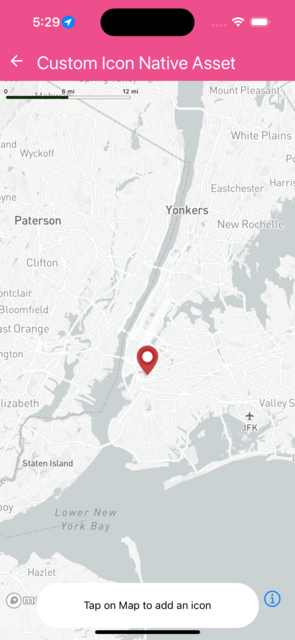

CustomIconNativeAsset.png}
