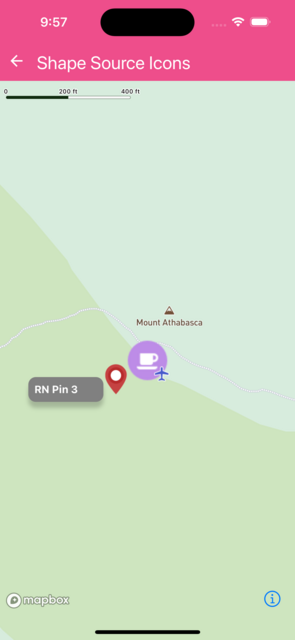

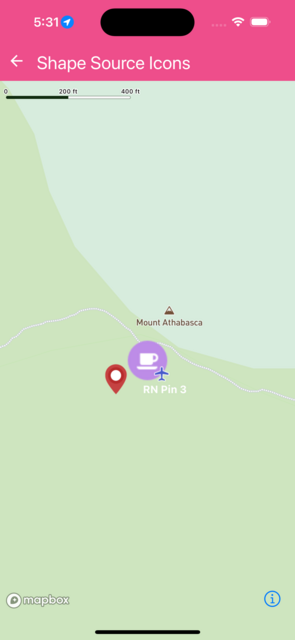

Shape Source Icons

Render icons with various methods.

• pin-rn: Rendered with a React Native View
• pin: Rendered with a native asset image
• pin3: Resolved as a result of onImageMissing
• example: Rendered with a js asset image (require)

import React from 'react';
import {
  MapView,
  Images,
  Camera,
  Image,
  SymbolLayer,
  ShapeSource,
} from '@rnmapbox/maps';
import { Text, View } from 'react-native';

import exampleIcon from '../../assets/example.png';
import pinIcon from '../../assets/pin.png';

const styles = {
  icon: {
    iconImage: ['get', 'icon'],

    iconSize: [
      'match',
      ['get', 'icon'],
      'example',
      1.2,
      'airport-15',
      1.2,
      /* default */ 1,
    ],
    iconAllowOverlap: true,
  },
  matchParent: { flex: 1 },
};

const featureCollection = {
  type: 'FeatureCollection',
  features: [
    {
      type: 'Feature',
      id: '9d10456e-bdda-4aa9-9269-04c1667d4552',
      properties: {
        icon: 'example',
      },
      geometry: {
        type: 'Point',
        coordinates: [-117.20611157485, 52.180961084261],
      },
    },
    {
      type: 'Feature',
      id: '9d10456e-bdda-4aa9-9269-04c1667d4552',
      properties: {
        icon: 'airport-15',
      },
      geometry: {
        type: 'Point',
        coordinates: [-117.205908, 52.180843],
      },
    },
    {
      type: 'Feature',
      id: '9d10456e-bdda-4aa9-9269-04c1667d4552',
      properties: {
        icon: 'pin',
      },
      geometry: {
        type: 'Point',
        coordinates: [-117.206562, 52.180797],
      },
    },
    {
      type: 'Feature',
      id: '9d10456e-bdda-4aa9-9269-04c1667d4553',
      properties: {
        icon: 'pin3',
      },
      geometry: {
        type: 'Point',
        coordinates: [-117.206862, 52.180897],
      },
    },
    {
      type: 'Feature',
      id: '9d10456e-bdda-4aa9-9269-04c1667d4555',
      properties: {
        icon: 'pin-rn',
      },
      geometry: {
        type: 'Point',
        coordinates: [-117.205862, 52.180697],
      },
    },
  ],
};

class ShapeSourceIcon extends React.Component {
  state = {
    images: {
      example: exampleIcon,
    },
  };

  render() {
    const { images } = this.state;

    return (
      <MapView style={styles.matchParent}>
        <Camera
          defaultSettings={{
            zoomLevel: 16,
            centerCoordinate: [-117.20611157485, 52.180961084261],
          }}
        />
        <Images
          nativeAssetImages={['pin']}
          images={images}
          onImageMissing={(imageKey) => {
            if (imageKey != 'pin-rn') {
              this.setState({
                images: { ...this.state.images, [imageKey]: pinIcon },
              });
            }
          }}
        >
          <Image name="pin-rn">
            <View>
              <View
                style={{
                  borderRadius: 10,
                  backgroundColor: 'gray',
                  padding: 8,
                  margin: 16,
                  width: 100,
                  shadowOffset: { width: 0, height: 8 },
                  shadowOpacity: 0.2,
                }}
              >
                <Text style={{ fontWeight: 'bold', color: 'white' }}>
                  RN Pin 3
                </Text>
              </View>
            </View>
          </Image>
        </Images>
        <ShapeSource id="exampleShapeSource" shape={featureCollection}>
          <SymbolLayer id="exampleIconName" style={styles.icon} />
        </ShapeSource>
      </MapView>
    );
  }
}

export default ShapeSourceIcon;

}
