Heatmap

Shows heatmap layer

import React from 'react';
import Mapbox from '@rnmapbox/maps';

import sheet from '../../styles/sheet';
import { SF_OFFICE_COORDINATE } from '../../utils';
import BaseExamplePropTypes from '../common/BaseExamplePropTypes';

class Heatmap extends React.Component {
  static propTypes = {
    ...BaseExamplePropTypes,
  };

  render() {
    return (
      <Mapbox.MapView style={sheet.matchParent}>
        <Mapbox.Camera
          defaultSettings={{
            zoomLevel: 10,
            centerCoordinate: SF_OFFICE_COORDINATE,
          }}
        />

        <Mapbox.ShapeSource
          id="earthquakes"
          url="https://www.mapbox.com/mapbox-gl-js/assets/earthquakes.geojson"
        >
          <Mapbox.HeatmapLayer
            id="earthquakes"
            sourceID="earthquakes"
            style={{
              heatmapColor: [
                'interpolate',
                ['linear'],
                ['heatmap-density'],
                0,
                'rgba(33,102,172,0)',
                0.2,
                'rgb(103,169,207)',
                0.4,
                'rgb(209,229,240)',
                0.6,
                'rgb(253,219,199)',
                0.8,
                'rgb(239,138,98)',
                1,
                'rgb(178,24,43)',
              ],
            }}
          />
        </Mapbox.ShapeSource>
      </Mapbox.MapView>
    );
  }
}

export default Heatmap;

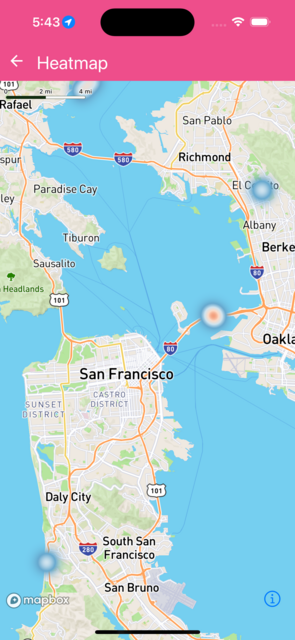

Heatmap.png}
